| Hardware Specification |
| Hardware version |
3 |

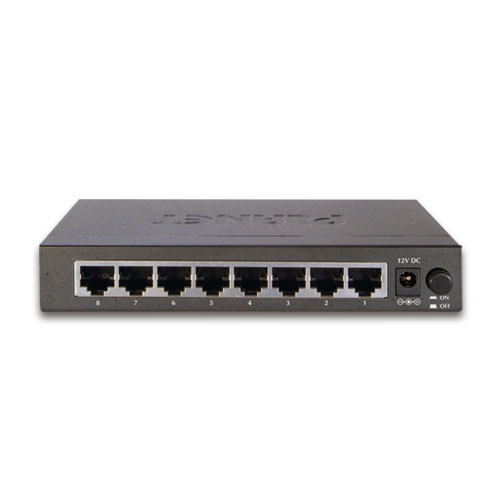

| 10/100Base-TX Ports |
8 |
| LED Display |
One for Power, One for Link / Act per port |
| Dimension (W x D x H) |
160 x 80 x 28 mm |
| Weight |
325g |
| Power Requirement |
DC 12V, 500mA |
| Power Consumption / Dissipation |
4.3 Watts / 14.6 BTU |
| Switch Specification |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
2K |
| Packet buffer memory |
448K bits |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Switch Fabric |
1.6Gbps |
| Throughput (packet per second) |
1.19Mpps |
| Standard Conformance |
| Standard |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-TX Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
|
| Regulation Compliance |
FCC Part 15 Class A CE |
| Environment |
| Temperature |
Operating: 0~50 Degree C
Storage: -10~70 Degree C |
| Humidity |
Operating: 5~90%
Storage: 5~90% (Non-Condensing) |
