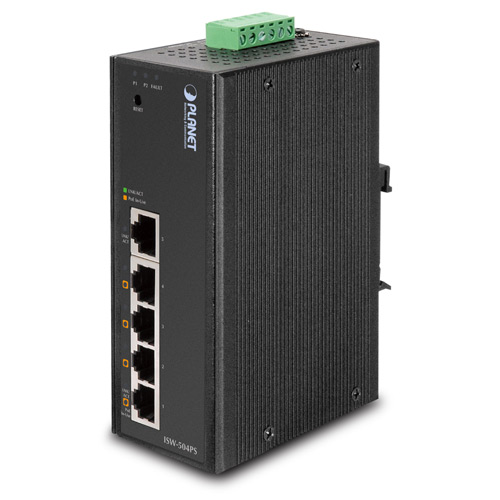

ISW-504PS

5-Port 10/100Mbps with 4-Port PoE Industrial Web Smart Ethernet Switch

Overview

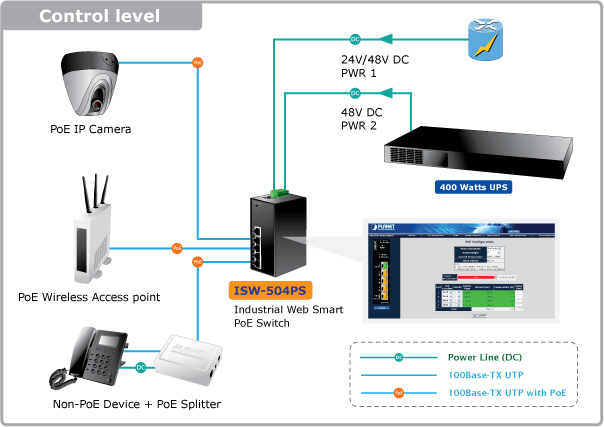

Application
Key Features
Specification
Download
Related Products

IEEE 802.3af Power over Ethernet Industrial Switch

The PLANET ISW-504PS, a Web management Industrial PoE Switch, is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and performs intelligent PoE control, power usage monitoring and smart Layer 2 switching management in industrial harsh environments. The ISW-504PS provides 5 10/100Mbps copper ports with 4-Port IEEE 802.3af Power over Ethernet inject interfaces delivered in an IP-30 rugged strong case. Supporting up to 15.4Watts power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the ISW-504PS is an ideal solution to deploy surveillance system and wireless service in climatically demanding wide temperature range (-10 to 60 Degree C) environments.

IEEE 802.3af Power over Ethernet Industrial Switch

PoE feature is more often supported in the industrial Ethernet devices for efficient operation in harsh environments. The ISW-504PS in-line power follows standard IEEE 802.3af and able to give power to 4 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5 / 5e UTP wire. With Data and Power over Ethernet from one unit, the ISW-504PS shall reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. Furthermore, there is only 24V DC input in some industrial environments, the ISW-504PS supports 24V DC or 48V DC dual voltages input and able to provide more wide range of industrial IEEE 802.3af PoE applications.

Excellent Software of Web Smart Features

For efficient management, the ISW-504PS is built with Web-Based management design to offer a user-friendly configuration interface. It makes the ISW-504PS easy to survey and control the PoE power provision to the devices via the Web interface. The ISW-504PS provides Web Smart function including 802.1Q VLAN, bandwidth control, QoS, PoE Configuration, Port Management, Alert Trap Configuration and etc. These features provide a cost-effective way to manage the network devices through the Internet whenever you are at work or at home.

Robust Switch Performance

The ISW-504PS offers high performance switch architecture with 5 10/100Mbps UTP ports. It provides non-blocking switch fabric, wire-speed throughput as high as 1Gbps and the 1K MAC Address table. It also performs wire-speed packets transfer without risk of packet loss and the Flow Control function is default enabled to provide fast and reliable data transfer.
All of the RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 3, 4, 5, 5e or 6 cable. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Environmentally Hardened Design

With IP-30 industrial case protection, the ISW-504PS provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The aluminum metal case helps cooling excellently and enables the Industrial PoE Switch to operate stably under the harsh temperature environment ranges from -10 to 60 Degree C. Therefore the web management Industrial PoE Switch can be placed in almost any difficult environment. It also offers dual-redundant, reversible polarity 24V DC or 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Hardware Specification
10/100Base-TX Ports	5
100Base-FX Port	NA
IEEE 802.3af PoE ports	4
Dimension (D x W x H)	135 x 87.8 x 56 mm
Weight	871g
Power LED	Power1, Power2 and Fault Port 1~4: PoE in-use, LNK/ACT Port 5: LNK/ACT
Power Requirement	24 or 48 VDC, Redundant power with polarity reverse protection function
Enclosure	IP-30 aluminum metal case
Protection	ESD (Ethernet): 6KV DC Surge (Power): 6KV DC
Installation	DIN Rail kit and Wall Mount ear
Alarm	One relay output for power fail Alarm Relay current carry ability: 1A @ DC 24V
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 48V DC, 350mA . Max. 15.4 Watts
Power Pin Assignment	1/2(+), 3/6(-)
Switch Specification
Switch Processing Scheme	Store-and-Forward
Switch fabric	1Gbps
Throughput (packet per second)	0.74Mpps@64bytes
Address Table	1K entries
Maximum Frame Size	1536 Bytes
Pack Buffer	512k bits
Flow Control	Back Pressure for Half Duplex IEEE 802.3x Pause Frame for Full Duplex
Network cables	10/100Base-TX: Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max.) EIA/TIA-568 100-ohm STP (100meters, max.)
Layer 2 Function
Management	Web management, SNMP Trap
VLAN	• Port-Based VLAN • IEEE 802.1Q Tag-Based VLAN, Up to 16 VLAN groups
QoS	2 priority queues for three type of Class of Service 　• Port-Based 　• IEEE 802.1p priority tag 　• TCP/IP header’s DSCP classifier 　• Weighted Round Robin queue scheduling
Bandwidth Control	Inbound Rate Limit and Outbound Traffic shaping
Storm Control	Disable, 12.5%, 25%, 50%, 62.5% 4 levels
Security	Supports 5 IP addresses that have permission to access the switch
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Stability testing	IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Standard Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging
Environment
Temperature	Operating: -10~60 Degree C Storage: -40~85 Degree C
Humidity	Operating: 5~90%, Storage: 5~90% (Non-condensing)

Ordering Information
ISW-504PS	5-Port 10/100Mbps with 4-PoE Industrial Web Smart Switch (-10~60 Degree C)
ISW-514PS	4-Port 10/100Mbps with PoE + 1-Port 100FX(MM, SC) Industrial Web Smart Switch - 2km (-10~60 Degree C)
ISW-514PS15	4-Port 10/100Mbps with PoE + 1-Port 100FX(SM, SC) Industrial Web Smart Switch - 15km (-10~60 Degree C)
ISW-514PSF	4-Port 10/100Mbps with PoE + 1-Port 100FX(SFP) Industrial Web Smart Switch (-10~60 Degree C)
