| Camera |
| Image Device |
1/2.5" 5 mega progressive scan CMOS image sensor |
| Lens |
FOV=186±4° (D/H/V), F=2.8, f=1.05mm
Mechanical IR-cut Filter

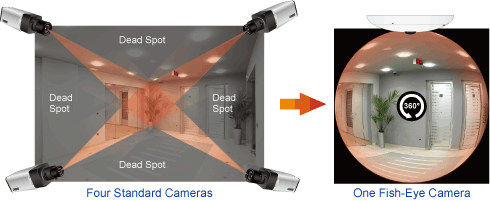

Angle of view: 360 degrees view angle
|
| Min Illumination |
1.9 Lux @ F2.8, without IRE (Color)
0.1 Lux @ F2.8, without IRE (B/W)
|
| Effective Pixels |
1920 x 1920 pixels (4:3) |
| Video |
| Video Encoder |
H.264 / M-JPEG / MPEG |
| Video Resolution |
H.264:
1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240
M-JPEG:
1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240
MPEG4:
1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240
|
| Frame Rate |
Up to 15fps for 1920 x 1920 resolutions |
| Image Setting |
Day / Night Mode

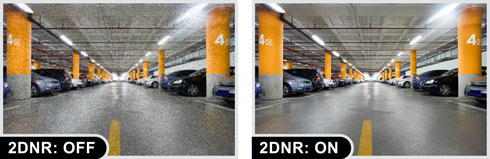

2D noise reduction
WDR
Brightness, Saturation, Contrast, Sharpness
Rotate/Mirror
Text, time and date overlay
|
| Streaming |
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)
Simultaneously multi-profile streaming
ROI
|
| Rate Control |
CBR (Constant Bit Rate)
VBR (Variable Bit Rate)
|
| UI Layout |
Source view (1O)
180° Single broad view (1P wall)
360° Panoramic view (1P ceiling)
360° Quad view (4R)
360° Double broad view (2P)
180° Triple view (1P2R)
360° Triple view (1P2R)
Triple with Source view (102R)
Quad with Source view (103R)
|
| Audio |
| Audio Streaming |
2-way audio |
| Audio Compression |
RTSP: G.711 64kbps |

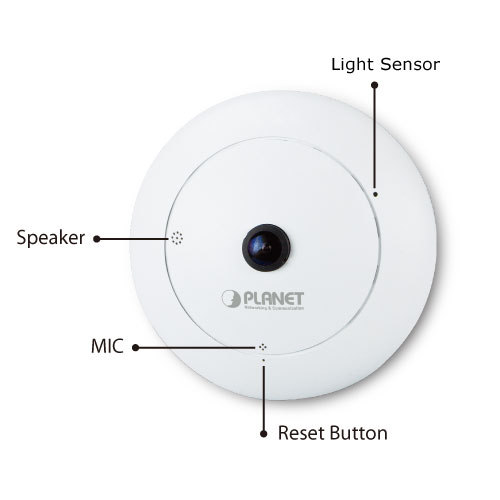

| Microphone |
Built-in microphone |
| Speaker |
Built-in speaker |

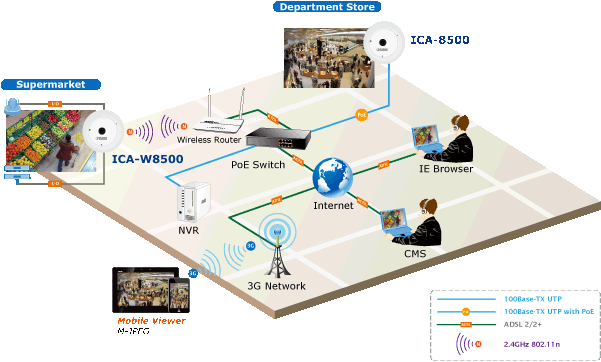

| Network and Configuration |
| Network Standard |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX

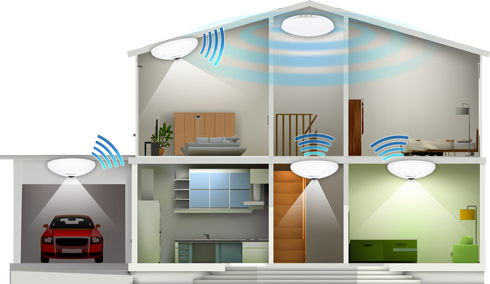

IEEE 802.11b/g/n
|
| Network Protocol |
HTTP, HTTPS, TCP/ IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast |
| Antenna connector |
1x2db dipole antenna |
| Frequency |
2.4GHz |
| RF Transmission Power |
OFDM: 13dBm
CCK: 17dBm
|
| Output Power |
802.11n: 12dBm (default) +/- 1dBm
802.11g: 14dBm (default) +/- 1dBm
802.11b: 17dBm (default) +/- 1dBm
|
| Data Rate |
802.11n: up to 150Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
|
| Receive Sensitivity |
802.11b (11Mbps):
CCK@8% PER = -88dBm
802.11g (54Mbps):
OFDM @ 10% PER = -72dBm
802.11n Draft 6.0:
HT20 @ 10% PER = -66 dBm
HT40@ 10% PER= -61dBm
|
| Security |
Password protection, Https encryption, user access log |
| Users |
Depending on streaming data rate used |
| System Integration |
| Application Programming Interface |
Open API for software integration
ONVIF
|
| Alarm Triggers |
Intelligent video motion detection |
| Alarm Events |
File upload via FTP, e-mail or Micro SD card
Notification via e-mail
|
| Environment |
| Power Requirements |
12V DC, 2A |
| Power Consumption |
Max. 6W |
| Operating Temperature |
0 ~ 50 degrees C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Weight |
324g |
| Dimensions (Φ x H) |
194 x 49 mm |
| Emission |
CE, FCC |

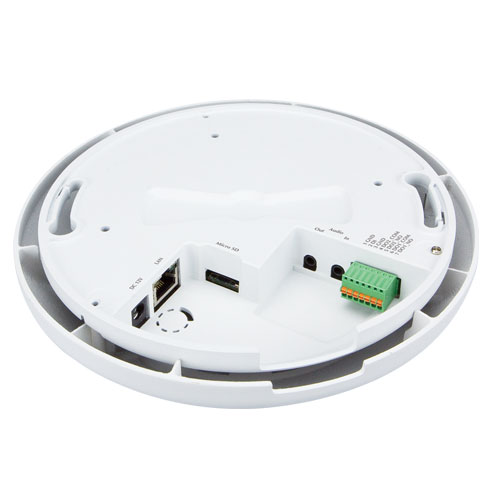

| Connectors |
10/100Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
Audio in
Audio out
Micro SD/SDHC card (max. 32GB, Class 6)
Factory default reset button
|
