Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment
Designed to be installed in heavy industrial demanding environments, the IGS-4215-8P2T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-8P2T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. | | | | | | | | | | | | | | Built-in Unique PoE Functions for Powered Devices Management
As the industrial managed PoE switch for surveillance, wireless and VoIP networks, the IGS-4215-8P2T2S features the following special PoE management functions:
■ PD alive check
■ Scheduled power recycling
■ PoE schedule

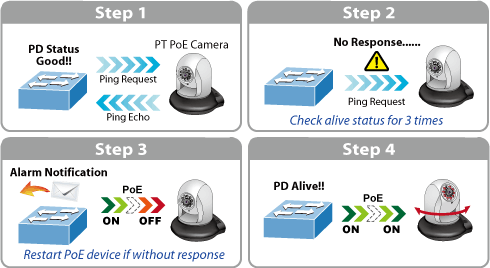

■ PoE usage monitoring | | | | | | | Intelligent Powered Device Alive-Check
The IGS-4215-8P2T2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-8P2T2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden. | | | | | | | | | | | | | | Scheduled Power Recycling

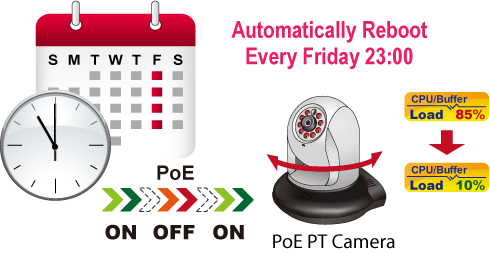

The IGS-4215-8P2T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. | | | | | | | | | | | | | | PoE Schedule for Energy Saving

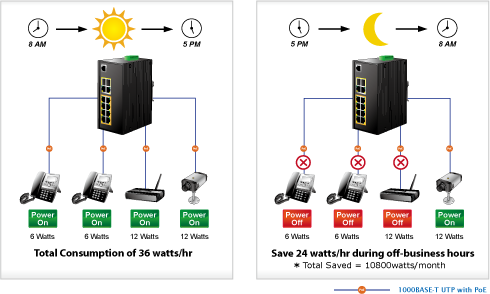

Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-8P2T2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours. | | | | | | | | | | | | | | Intelligent LED Indicator for Real-time PoE Usage Monitoring

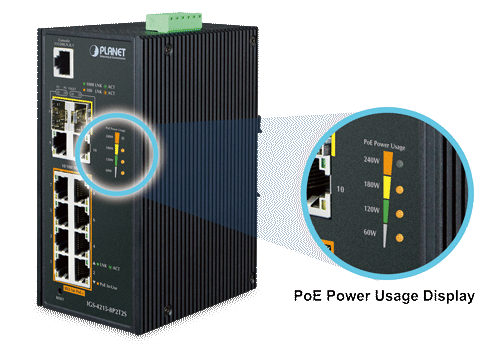

Via the power usage chart in the web management interface, the IGS-4215-8P2T2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the IGS-4215-8P2T2S helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-4215-8P2T2S has four orange LEDs indicating four different PoE power usages, namely 60W, 120W, 180W and 240W.

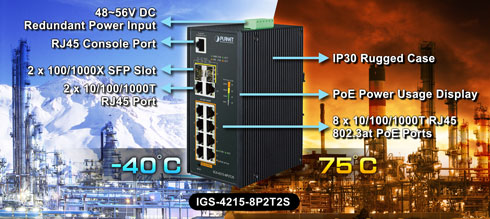

| | | | | | | | | | | | | | Environmentally Hardened Design
With the IP30 aluminum industrial case, the IGS-4215-8P2T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-8P2T2S can be placed in almost any difficult environment.
Robust Protection
The IGS-4215-8P2T2S provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the IGS-4215-8P2T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

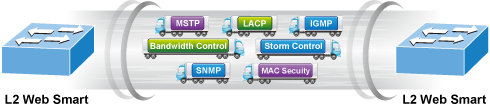

Robust Layer 2 Features
The IGS-4215-8P2T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-8P2T2S allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. | | | | | | | | | | | | | |

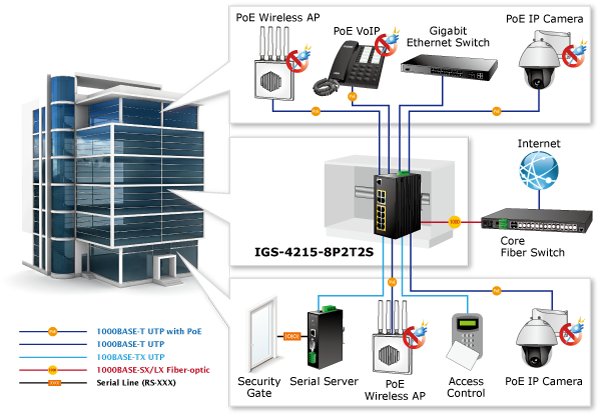

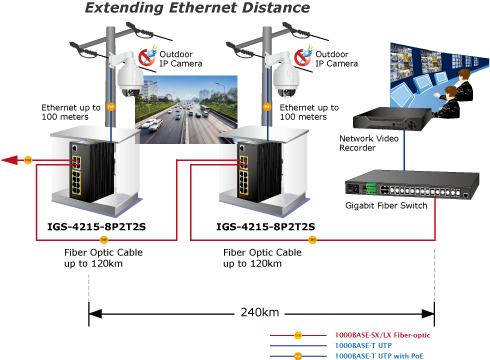

Industrial-grade PoE+ Switch for Building Automation and Security
Suitable for buildings where security is strictly to be enforced, the IGS-4215-8P2T2S, with eight 802.3at PoE+, in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-4215-8P2T2S makes the installation of IP cameras or wireless APs easier and more efficient. | | | | | | | | | | | | | | Perfect Integration Solution for IP PoE Camera and NVR System

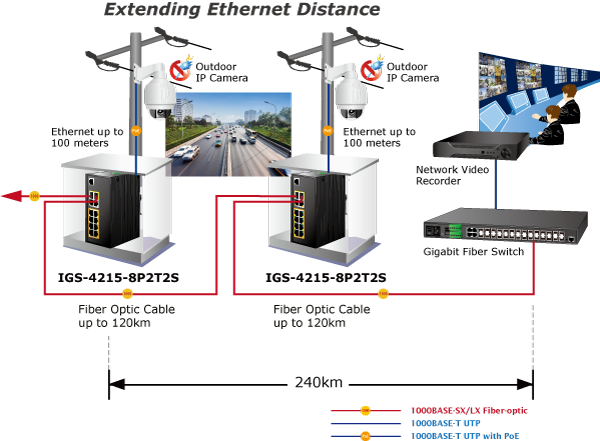

The IGS-4215-8P2T2S provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1000BASE-X SFP interfaces, the IGS-4215-8P2T2S can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-4215-8P2T2S facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-4215-8P2T2S undoubtedly brings an ideal secure surveillance system at a lower total cost. | | | | | | | | | | | | | | Multiple Spanning Tree Protocol with PoE Manageable Making Data Transmit Uninterrupted
The IGS-4215-8P2T2S features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Multiple Spanning Tree Protocol (802.1s MSTP) into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet Plus standard, the IGS-4215-8P2T2S can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The IGS-4215-8P2T2S can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.
| | |

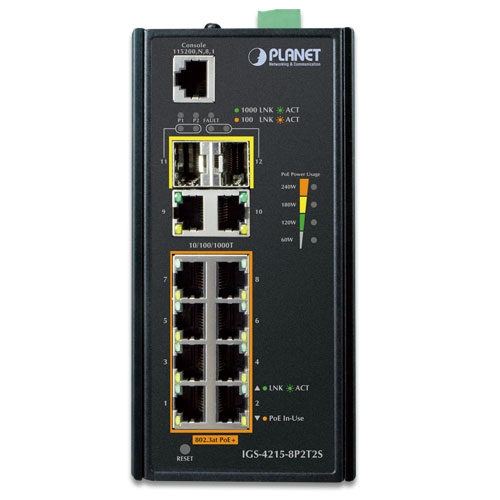

Physical Port - Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)
- Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
- Two 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-11 and Port-12)
- One RJ45 console interface for basic management and setup
Power over Ethernet- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- 240-watt PoE budget
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- PoE management
- - Total PoE power budget control
- - Per port PoE function enable/disable
- - PoE port power feeding priority
- - Per PoE port power limitation
- - PD classification detection
- - PD alive-check
- - PoE schedule
Industrial Case & Installation- IP30 aluminum case
- DIN-rail and wall-mount design
- 48~56V DC, redundant power with polarity reverse protect function
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Switching- Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Layer 2 Features- Supports VLAN
- - IEEE 802.1Q tagged VLAN
- - Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- - Protocol VLAN
- - Voice VLAN
- - Private VLAN (Protected port)
- - Management VLAN
- - GVRP
- Supports Spanning Tree Protocol
- - STP (Spanning Tree Protocol)
- - RSTP (Rapid Spanning Tree Protocol)
- - MSTP (Multiple Spanning Tree Protocol)
- - STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- Supports Link Aggregation
- - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (static trunk)
- - Maximum 4 trunk groups, up to 4 ports per trunk group
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service- Ingress/Egress Rate Limit per port bandwidth control
- Traffic classification
- - IEEE 802.1p CoS
- - TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast- Supports IPv4 IGMP snooping v2, v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security- Storm Control support
- - Broadcast/unknown unicast/unknown multicast
- Authentication
- - IEEE 802.1X port-based network access authentication
- - Built-in RADIUS client to cooperate with the RADIUS servers
- - DHCP Option 82
- - RADIUS/TACACS+ authentication
- Access Control List
- - IPv4/IPv6 IP-based ACL
- - IPv4/IPv6 IP-based ACE
- - MAC-based ACL
- - MAC-based ACE
- MAC Security
- - Static MAC
- - MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
Management- IPv4 and IPv6 dual stack management
- Switch Management Interface
- - IPv4/IPv6 Web switch management
- - Console and telnet Command Line Interface
- - SNMP v1, v2c, v3
- - SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- Static and DHCP for IP address assignment
- System Maintenance
- - Firmware upload/download via HTTP/TFTP
- - Configuration upload/download through HTTP/TFTP
- - Hardware reset button for system reboot or reset to factory default
- - Dual images
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link Up and Link Down notification
- Event message logging to remote syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility
| | |
| Hardware Specifications |
| Copper Ports |
Ten 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port-1 to Port-10) |
| SFP/mini-GBIC Slots |
Two 1000BASE-SX/LX/BX SFP interfaces (Port-11 and Port-12)
Compatible with 100BASE-FX SFP
|
| PoE Injector Port |
Eight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8) |
| Console |
1 x RS232-to-RJ45 serial port (115200,8, N, 1) |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
24Gbps/non-blocking |
| Switch Throughput@64 bytes |
17.85Mpps @64 bytes |
| MAC Address Table |
8K entries |
| Shared Data Buffer |
4.1 megabits |
| Flow Control |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Jumbo Frame |
10 Kbytes |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| LED |
3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Red: Power Fault
2 x LED for PoE Copper Port (Port-1~Port-8):
■ Green: LNK/ACT (10/100/1000Mbps)
■ Orange: PoE-In-Use
2 x LED for 10/100/1000T Copper Port (Port-9~Port-10):
■ Green: 1000 LNK/ACT
■ Orange: 10/100 LNK/ACT
2 x LED for per mini-GBIC interface (Port-11 and Port-12)
■ Green: 1000 LNK/ACT
■ Orange: 100 LNK/ACT
4 x LED for PoE Power Usage (W) (Low to high)
■ Orange: 60W, 120W, 180W and 240W |

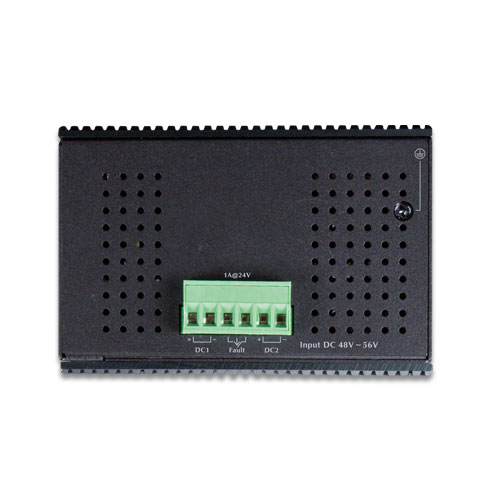

| Connector |
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
|
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
| Power Requirements |
48~56V DC, 6A (max.) (>51V DC for PoE+ output recommended) |
| Power Consumption/ Dissipation |
7.8 watts, 26BTU (Standby without PoE function) at DC 56V power input
14 watts, 47BTU (Full loading without PoE function) at DC 56V power input
242 watts, 825BTU (Full loading with PoE function) at DC 56V power input
|
| Dimensions (W x D x H) |
161 x 107 x 72 mm |
| Weight |
1040g |
| ESD Protection |
6KV DC |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail kit and wall-mount ear |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Output |
IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 36 watts
|
| PoE Power Budget |
Dual power input: maximum 240W (depending on power input) |
| Max. Number of Class 2 PDs |
8 |
| Max. Number of Class 3 PDs |
8 |
| Max. Number of Class 4 PDs |
8 |
| Layer 2 Functions |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor |
| VLAN |
802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk
Supports 8 groups with 4 ports per trunk
|
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping |
IPv4 IGMP snooping v2, v3
IGMP querier
Up to 256 multicast groups |
| MLD Snooping |
IPv6 MLD snooping v2, v3, up to 256 multicast groups |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE |
| QoS |
8 mapping IDs to 8 level priority queues
- Port number
- 802.1p priority
- DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control |
| Security |
IEEE 802.1X port-based authentication
Built-in RADIUS client to cooperate with RADIUS server
RADIUS/TACACS+ authentication
IP-MAC port binding
MAC filtering
Static MAC address
DHCP snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Storm control support
- Broadcast/unknown multicast/unknown unicast |
| Management Functions |
| Basic Management Interfaces |
Web browser, Console,Telnet, SNMP v1, v2c, v3
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
Remote/local syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility |
| Secure Management Interfaces |
SSH, SSL, SNMP v3 |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB v2
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2 |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
Quick Guide
| Date |
Version |
Description |
Download |
| 2017-06-30 |
1.1 |
Initial release.
|
 | |
| Photo |
Model |
Description |
 |
ICA-2250VT |
Industrial PoE Plus Outdoor IR IP Camera |
 |
ICA-4200V |
Full HD 20M IR Vari-focal Dome IP Camera |
 |
ICA-E3550V |
5 Mega-pixel Bullet IR PoE IP Camera with Extended Support |
 |
ICA-E5550V |
5 Mega-pixel Vandalproof IR PoE IP Camera with Extended Support |
 |
ICA-E8550 |
5 Mega-pixel Outdoor IR PoE Fisheye IP Camera with Extended Support |
 |
ICA-HM620 |
2 Mega-Pixel PoE Plus Speed Dome Internet Camera |
 |
ICF-1800 |
HD Touch Screen Android Multimedia Conferencing Phone |
 |
IGS-4215-4P4T |
Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T Managed Switch (-40~75 degrees C) |
 |
IGS-4215-4P4T2S |
Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C) |
 |
POE-162S |
IEEE 802.3at Gigabit High Power over Ethernet Splitter |
 |
POE-E201 |
IEEE 802.3at Power over Gigabit Ethernet Extender |
 |
VIP-5060PT |
Professional HD PoE IP Phone (6-Line) |
 |
WDAP-1750AC |
1750Mbps 802.11ac Dual Band Wall Mount Enterprise Wireless Access Point |
 |
WDAP-C7200AC |
1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point |
 |
WDAP-W7200AC |
1200Mbps 802.11ac Dual Band Wall Mount Wireless Access Point |
 |
WNAP-C3220A |
300Mbps 802.11n Ceiling-mount Wireless Access Point |
 |
WNAP-W2201A |
300Mbps 802.11n In-Wall Wireless Access Point (EU Type) |
|
