| Hardware Specifications |
| Interface |
Ethernet
1 x 10/100/1000BASE-T RJ45, Ethernet data output port

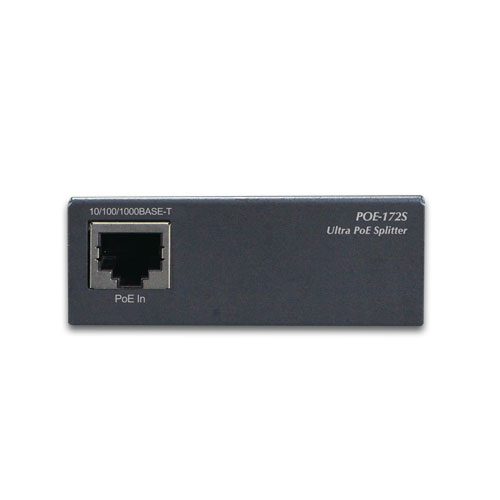

PoE in
1 x 10/100/1000BASE-T RJ45, PoE power input port |

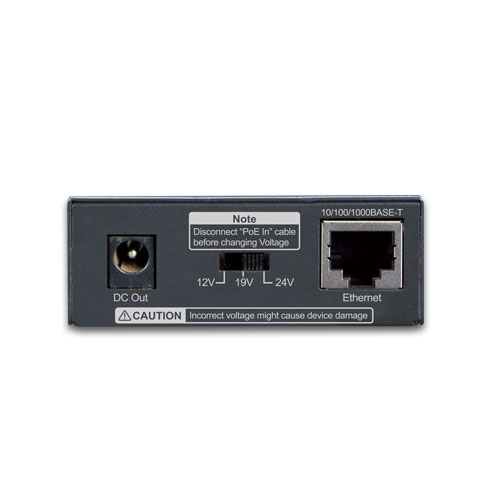

| DIP Switch |
12V/19V/24V DC output |
| Power Socket |
DC receptacle 2.5mm |

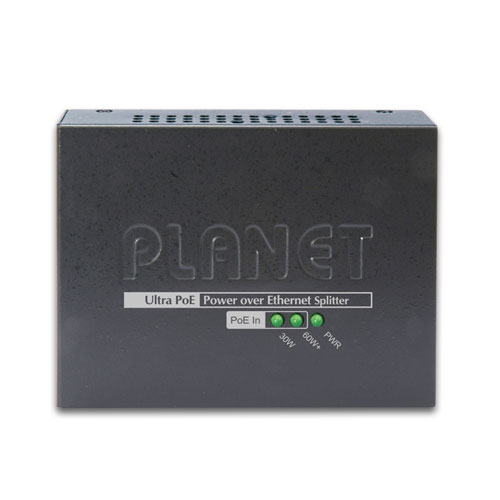

| LED Indicator |
System: Power x 1 (Green)
PoE-in-use x 2 (Green)
|
| Data Rate |
10/100/1000Mbps |
| Dimensions (W x D x H) |
94 x 70.3 x 26.2 mm |
| Weight |
300g |
| Installation |
Desktop/wall mountable |
| Enclosure |
Metal case |
| Power Requirements |
50~56V DC PoE |
| Unit Output Current (at 56VDC Input) |
75-watt PoE input
- 5A@12V DC
- 3.15A@19V DC
- 2.5A@24V DC
|
| Power Consumption |
Ethernet full loading without DC output:
3.7 watts
Full loading with maximum 12V DC, 5A output:
75 watts
|
| Network Cable |
Ultra PoE (60W+)
4-pair UTP Cat. 5, 5e, 6, up to 100m (328ft)
802.3af/at PoE (15W/30W)
2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
|
| Power over Ethernet |
| PoE Standard |

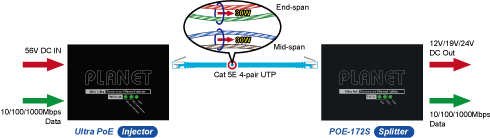

802.3bt Type 3/Type 4 Power over Ethernet
4-pair 802.3at PoE+ and Cisco UPOE compliant with voltage within 50V-56V DC
|
| Power Output |
DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type |

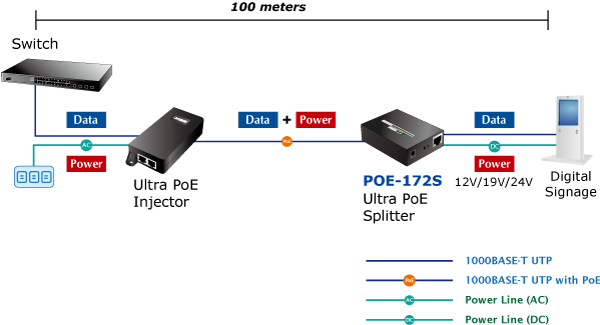

End-span + Mid-span
End-span
Mid-span
|
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
|
| Regulatory Compliance |
FCC, CE |
| Environment |
| Operating Temperature |
0 ~ 50 degrees C |
| Storage Temperature |
-10 ~ 70 degrees C |
| Operating Humidity |
5 ~ 90%, non-condensing |
| Storage Humidity |
5 ~ 90%, non-condensing |
| Standard Accessories |
| Package Contents |
One 15cm UTP straight network cable
Two external female plug cables:
- 5.5/2.5mm to 5.5/2.5mm
- 5.5/2.5mm to 5.5/2.1mm
|
