WDAP-C7200E

1200Mbps 802.11ac Dual Band Ceiling-mount Wireless Access Point (802.3at PoE, 2 10/100/1000T LAN)

Overview
Application
Key Features
Specification

Ultra-high-speed, Enterprise Wireless LAN Solution

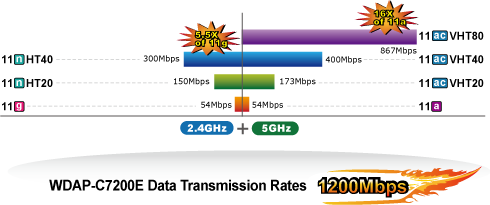

To meet enterprise demand for wireless communication, PLANET WDAP-C7200E 1200Mbps Dual Band 802.11ac Wireless AP supports central management through PLANET AP controllers. With IEEE 802.11ac 2T2R dual-band technology, the WDAP-C7200E provides a maximum wireless speed of 867Mbps at 5GHz and 300Mbps at 2.4GHz.

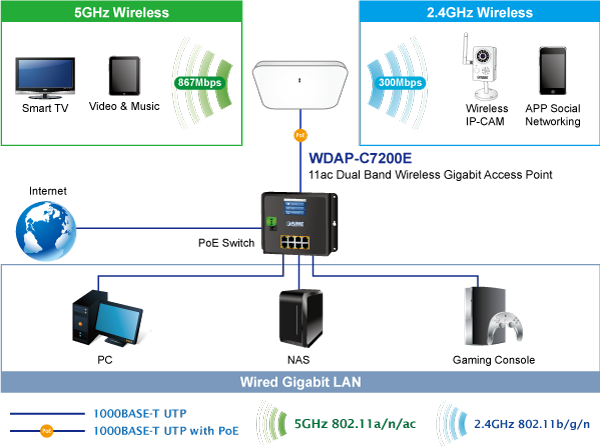

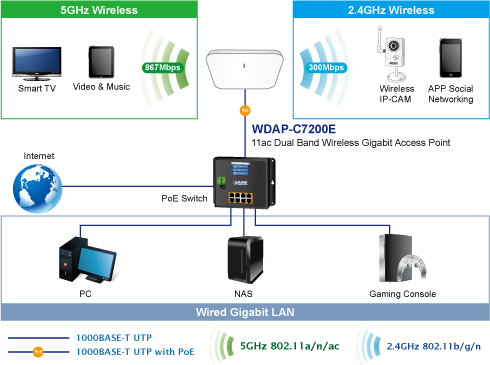

Powerful Dual-band WLAN Solution

PLANET WDAP-C7200E, adopting the IEEE 802.11ac standard, provides a high-speed transmission of power and data, meaning two remote nodes in the 5GHz frequency band can be bridged. The 2.4GHz wireless connection can also be used simultaneously. Furthermore, the WDAP-C7200E adopts the high-class Qualcomm Atheros SoC (System-on-a-Chip), which provides higher stability to meet the stringent requirements of the solution.

Advanced Security and Rigorous Authentication

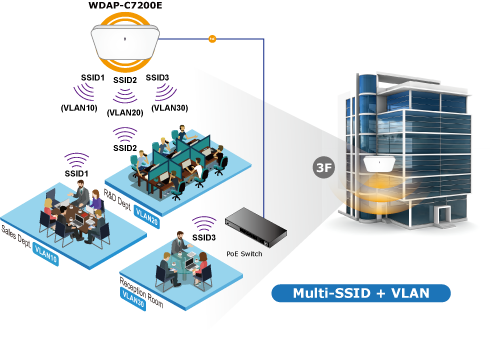

The WDAP-C7200E supports 128-bit WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. For management purposes, the IEEE 802.1Q VLAN supported allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access.

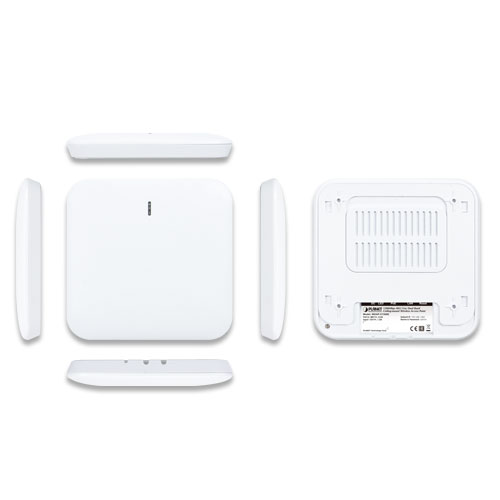

Ceiling-mount Design for Your Environment

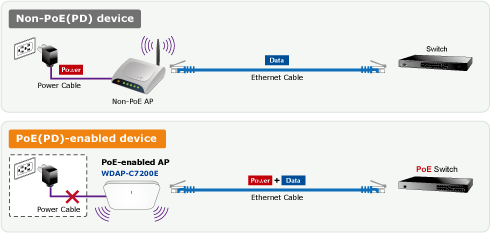

With the standard IEEE802.3at Power over Ethernet (PoE) design, the WDAP-C7200E can be easily installed in the areas where power outlets are not available. By supporting the standard IEEE 802.3at PoE PD power scheme, the WDAP-C7200E can be powered and networked by a single UTP cable, effectively eliminating the needs of dedicated electrical outlets on the ceiling and reducing the cabling cost. Furthermore, the system administrator is able to arrange the PoE schedule of the WDAP-C7200E by working with the managed PoE switch.

Hardware Specifications
Interfaces LAN	2 x 10/100/1000BASE-T RJ45 port, 1 port 802.3at PoE In Auto-negotiation and Auto MDI/MDI-X
Antennas Gain	2 x Internal dual-band 5dBi antenna
Reset Button	Reset button on the rear side (Press over 7 seconds to reset the device to factory default)
LED Indicators	SYS, 2.4G, 5G
Dimensions (Φ x H)	198 x 28mm
Weight	498 ±5g
Power Requirements	48V 0.5A, IEEE 802.3at PoE+ or 12V DC, 1.5A
Power Consumption	< 20W
Mounting	Ceiling Mount
Wireless Interface Specifications
Standard	IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control
Media Access Control	CSMA/CA
Data Modulation	802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode	2.4G / 5G concurrent mode
Frequency Range	2.4GHz: 　FCC: 2.412~2.462GHz 　ETSI: 2.412~2.472GHz 5GHz: 　FCC: 5.180~5.240GHz, 5.745~5.825GHz 　ETSI: 5.180~5.700GHz
Operating Channels	FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels) ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (16 Channels) *5GHz channel list will vary in different countries according to their regulations.
Max. Transmit Power (dBm)	FCC: up to 29 ± 1dBm ETSI: < 20dBm (EIRP)
Receive Sensitivity	2.4GHz: 　802.11b(1Mbps):-99dBm 　802.11b(11Mbps):-92dBm 　802.11g(6Mbps):-95dBm 　802.11g(54Mbps):-82dBm 　802.11n HT20(MCS0/MCS8):-95dBm 　802.11n HT20(MCS7/MCS15):-77dBm 　802.11n HT40(MCS0/MCS8):-93dBm 　802.11n HT40(MCS7/MCS15):-75dBm 5GHz: 　802.11a(6Mbps):-92dBm 　802.11a(54Mbps):-75dBm 　802.11n HT20(MCS0/MCS8):-91dBm 　802.11n HT20(MCS7/MCS15):-72dBm 　802.11n HT40(MCS0/MCS8):-88dBm 　802.11n HT40(MCS7/MCS15):-70dBm 　802.11ac VHT20(MCS0):-92dBm 　802.11ac VHT20(MCS8):-70dBm 　802.11ac VHT40(MCS0):-89dBm 　802.11ac VHT40(MCS9):-65dBm 　802.11ac VHT80(MCS0):-87dBm 　802.11ac VHT80(MCS9):-61dBm
Software Features
LAN	Static IP Supports IP-MAC binding
WAN	■ Static IP ■ Dynamic IP ■ PPPoE

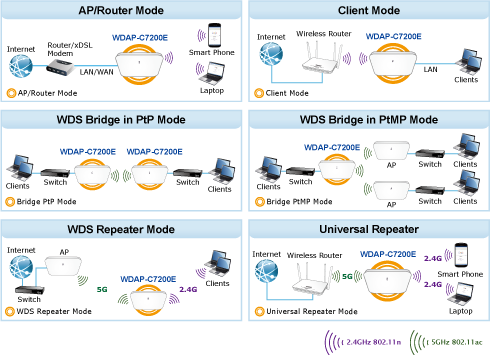

Wireless Mode	■ Access Point ■ Gateway ■ Repeater ■ WDS (PtP/PtMP)
Channel Width	20MHz, 40MHz, 80MHz
Encryption Security	64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security	Enable/Disable SSID Broadcast Wireless MAC address filtering User Isolation
Max. SSIDs	4
Max. Clients	64 per radio (50 is suggested, depending on usage)
Max. WDS Peers	4
Wireless QoS	Supports Wi-Fi Multimedia (WMM)
Wireless Advanced	WMM (Wi-Fi Multimedia): 802.11e Wireless QoS Multiple SSID: up to 4 at 2.4GHz and 5GHz, respectively Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other Provides Wireless Statistics
Wireless Advanced	Auto Channel Selection 5-level Transmit Power Control (100%, 75%, 50%, 25%, 12.5%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart
Status Monitoring	Device status, Wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server
VLAN	IEEE 802.1Q VLAN (VID: 3~4094) SSID-to-VLAN mapping up to 4 SSIDs
Self-healing	Supports auto reboot settings per day/hour
Management	Supports PLANET Hardware AP Controller/ Software AP Controller Applicable controllers[1]: WAPC-500, SAPC Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through SNMP v1/v2c/v3 support, MIB I/II, Private MIB *Remarks:[1]. the feature will be supported through firmware/system upgrade
Environment & Certification
Temperature	Operating: 0 ~ 40 degrees C Storage: -40 ~ 70 degrees C
Humidity	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)
Regulatory	CE, RoHS
