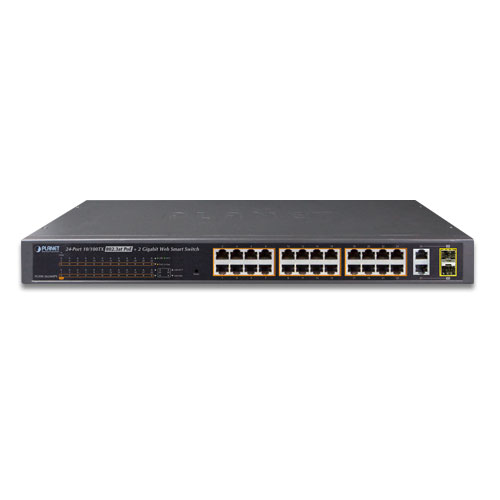

FGSW-2624HPS

24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Web Smart Ethernet Switch

Overview

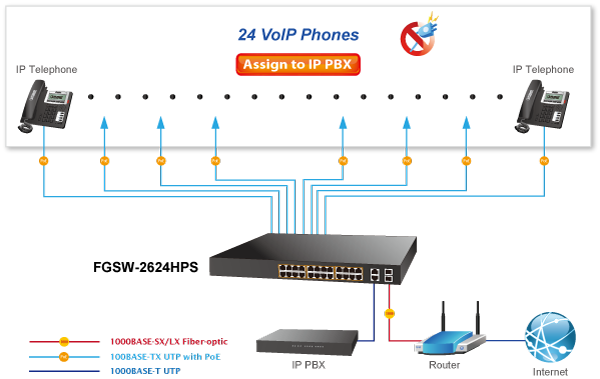

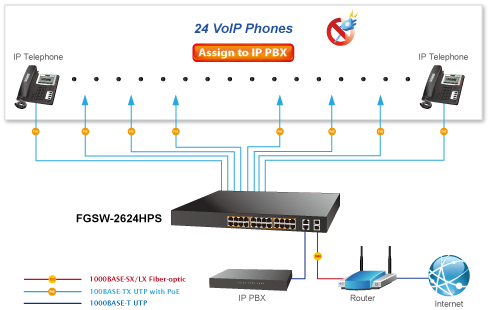

Application
Key Features
Specification

Cost-effective PoE+ Managed Switch for Small and Medium Networking

Particularly designed for the popular IP surveillance applications, PLANET FGSW-2624HPS 802.3at PoE web smart switch is a surveillance switch with the central management of remote power control and IP camera monitoring. The FGSW-2624HPS provides PoE functions along with 24 10/100BASE-TX ports featuring 30-watt 802.3at PoE+ with RJ45 copper interfaces and 2 Gigabit TP/SFP combo interfaces supporting high-speed transmission of surveillance images and videos. With a total power budget of up to 220 watts for different kinds of PoE applications, respectively, the FGSW-2624HPS provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

Centralized Power Management for Security and Public Service PoE Applications

To fulfill the needs of the high power consumption of PoE network applications, the FGSW-2624HPS features the standard IEEE 802.3at Power over Ethernet Plus (PoE+) that combines up to 30 watts of power output and data per port over one cat5E/6 Ethernet cable. It is designed specifically to meet the demand of the high power consumption of network PDs (powered devices) such as IR, PTZ, speed dome cameras; and even box-type IP cameras with built-in fan and heater. Compliant with both 802.3at and 802.3af standards, the series allows more flexibility in power requirement for a variety of PDs, making installation costs affordable.

Robust Layer 2 Features

The FGSW-2624HPS can be programmed for advanced switch management functions such as dynamic port link aggregation (LACP), Spanning Tree Protocol (STP), IGMP snooping v1 and v2, bandwidth control, and L2/L4 security control. The FGSW-2624HPS provides IEEE 802.1Q tagged VLAN, port-based VLAN and MTU VLAN. The VLAN groups allowed will be maximally up to 32. Via aggregation of supporting ports, the FGSW-2624HPS allows the operation of a high-speed trunk combining multiple ports and supports fail-over as well.

Remote and Centralized Management

For catering to the need of easy management and centralized SNMP application to monitor the status of the switch and traffic per port, the FGSW-2624HPS provides friendly Web management interface for efficient network operation. With its built-in Web-based management, the FGSW-2624HPS offers an easy-to-use, platform-independent management and configuration facility. It also supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software.

Flexible and Extendable Uplink Solution

The FGSW-2624HPS provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these fiber SFP slots, it can also connect with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters (multi-mode fiber) to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the industrial data centers and distributions.

Hardware Specifications
10/100Mbps Copper Ports	24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Copper Ports	2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26
Switch Architecture	Store-and-Forward
Switch Fabric	8.8Gbps / non-blocking
Throughput	6.54Mpps@64Bytes
Address Table	4K entries, automatic source address learning and ageing
Shared Data Buffer	2.75Mb embedded memory for packet buffers
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Maximum Transmit Unit	1518 Bytes
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Dimensions (W x D x H)	440 x 210 x 44mm, 1U height
Weight	2.8kg
Power Consumption	Max. 248watts / 846BTU
ESD Protection	Contact Discharge 4KV DC Air Discharge 8KV DC

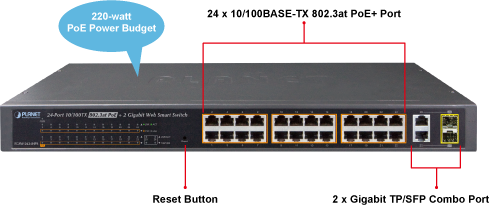

LED	System: 　Power (Green) 10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24): 　10/100Mbps LNK/ACT (Green) 　PoE-in-Use (Orange) 10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26): 　LNK/ACT (Green) 　100/1000 (Green)
Cable	Twisted-pair: 10BASE-T: 2-pair UTP Cat 3, 4, 5 for up to 100 meters 100BASE-TX: 2-pair UTP Cat 5, 5e for up to 100 meters 1000BASE-T: 4-pair UTP Cat 5e, 6 for up to 100 meters Fiber-optic Cable: 1000BASE-SX: 　50/125μm or 62.5/125μm multi-mode fiber-optic cable, up to 550m (varying on SFP module) 1000BASE-LX: 　9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module)
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE+ / PSE
PoE Power Supply Type	Mid-span
Power Pin Assignment	4/5(+), 7/8 (-)
PoE Power Output	Per Port 53V DC, Max. 30.8 watts
PoE Power Budget	220 watts (max.) @ 25 degrees C 190 watts (max.) @ 50 degrees C

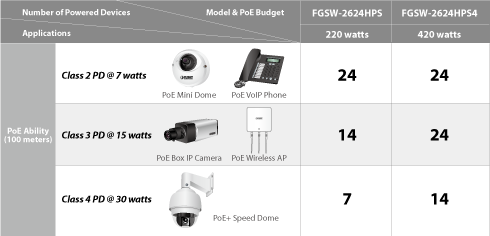

PoE Ability	PD @ 7 watts: 24 units PD @ 15.4 watts: 14 units PD @ 30 watts: 7 units
Layer 2 Functions
Port Configuration	Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status
Port Mirroring	TX / RX / Both Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs Port-based VLAN, up to 26 VLAN groups MTU VLAN
Link Aggregation	1 group of 2-Port 10/100/1000BASE-T trunk supported
QoS	Allows to assign low / high priority on each port First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
IGMP Snooping	IGMP (v1 / v2) Snooping, up to 32 multicast groups Without Query supported
Security Control	MAC address binding TCP & UDP filter
Management Functions
Basic Management Interfaces	Web browser, SNMP v1
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber-Optic IEEE 802.3x Full-duplex flow control IEEE 802.1Q VLAN IEEE 802.1p QoS IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
