| Hardware |
| Ethernet |
1 x RJ-45, 10/100/1000Base-T |
| Interfață USB |
2 x USB 2.0 for backup device and mouse |
| Interfața video |
VGA and HDMI video interfaces |
| Interfața audio |
1 x mic-in (phone jack 3.5mm), 1 x audio-out (phone jack 3.5mm) |
| Dispozitiv de stocare |
2 x 3.5" SATA III hard disk connector, 1 x e-SATA connector |
| LED |
Power, HDD, LAN, REC, Event, Alarm, Camera, DI/DO |
| Buton |
Reset |
| sirenă |
1 x Buzzer |
| DI / DO |
4 x Digital in, 4 x Digital out |
| aparat foto |
| Max. canale |
9-channel IP cameras |
| Camera a fost adăugată |
Manual / Auto Search / Auto Setup |
| Video |
| Comprimare |
H.264 |
| Rezoluţie |
5M / 3M / Full HD / SXGA / VGA / QVGA |
| Max. Rata de înregistrare video live (afișare locală) |
480fps@D130
360fps@720P30
120fps@1080P30
20fps@5M15
Max. 5MP/channel
|
| Max. tranzitată |
48Mbps |
| Instantaneu |
- Preview snapshot in HDD or removable device
- Search event snapshot
- Backup to USB device
|
| Audio |
| Tipul audio |
2-way |
| Format audio |
G.711, G.726 |

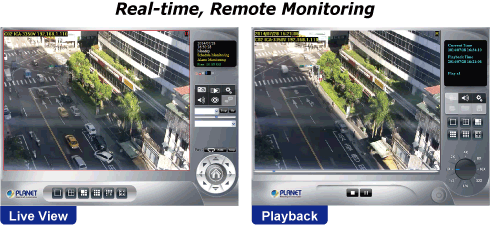

| Vizualizare live |
| Modul de afișare |
Live View / Playback / Full Screen |
| Ecran divizat |
1 / 4 / 6 / 9 / Full Screen |
| Ecran complet |
1 / 4 / 6 / 9 |
| Suport PTZ |
Preset / Tour / Auto Pan / Iris / Focus / Speed and Joystick |
| Redare |
| Ecran divizat |
1 / 4 / 6 / 9 / Full Screen |
| Modul de căutare |
Simple / Graphical / Event |
| Metoda de redare |
Play / Reverse / Pause / Seek / Pre I-frame / Next Frame
Search by time or event
|
| Record |
| Modul de înregistrare |
- Scheduled recording each camera
- Round the Clock / Motion Record mode / DI Detection / Event Triggering
- Pre-alarm / Post-alarm configuration
- Auto Recycle
|
| Monitor |

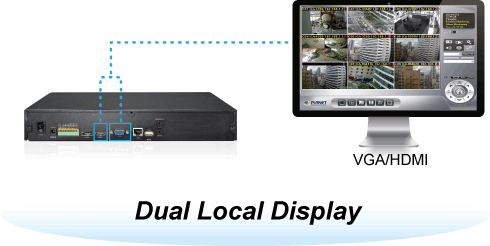

| Monitor dual |
Displays the same contents, depending on max. channels |
| Rezoluțiile monitorului |
1920x1080, 1440x900, 1366x768, 1280x1024, 1024x768 |
| Rețea și configurare |
| Serviciul de rețea |
Fixes IP / DHCP / PPPOE / DIPS Report / UPNP / DDNS |
| Notificare |
SMTP / HTTP / FTP / TCP |

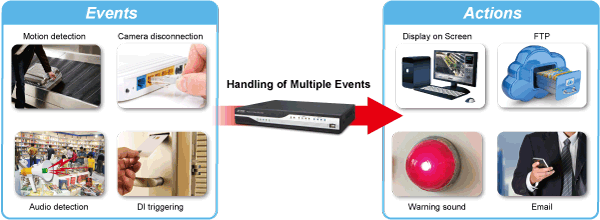

| Triggers și Eveniment |
| Tip de eveniment |
- Motion Alarm
- Alarm Disconnection
- Detection
- Digital Input
- Scheduled Triggering
- HDD Error
|
| Eveniment de acțiune |
- Display on Screen
- DO
- Alarm
- Snapshot
- Recording
- Mail
- FTP
- TCP
- HTTP
|
| administrare |
| Număr de grupuri |
2 (Administrator and User ) |
| privilegii |
Live View / Playback / Record / Setting / PTZ / Two-way Audio |
| Interfața cu utilizatorul |
- Graphic local user interface (operated by mouse)
- Web browser (Internet Explorer 7 or above)
- CMS Utility
|
| Tipul de jurnal |
System / Event / Bit-rate |
| Software Utility |
Search utility / Mobile app / CMS |
| Mediu inconjurator |
| Putere |
12V DC, 4.16A |
| Consum |
8W (without HDD) |
| Temperatura de Operare |
0~40 degrees C |
| Temperatura de depozitare |
-40~70 degrees C |
| Umiditate |
0~85% (non-condensing) |
| Greutate |
1455g |
| Dimensiuni (L x Î x H) |
330 x 252 x 57 mm |
